Isabella Urinal Kit: Single Stall Zip Flush

Includes:

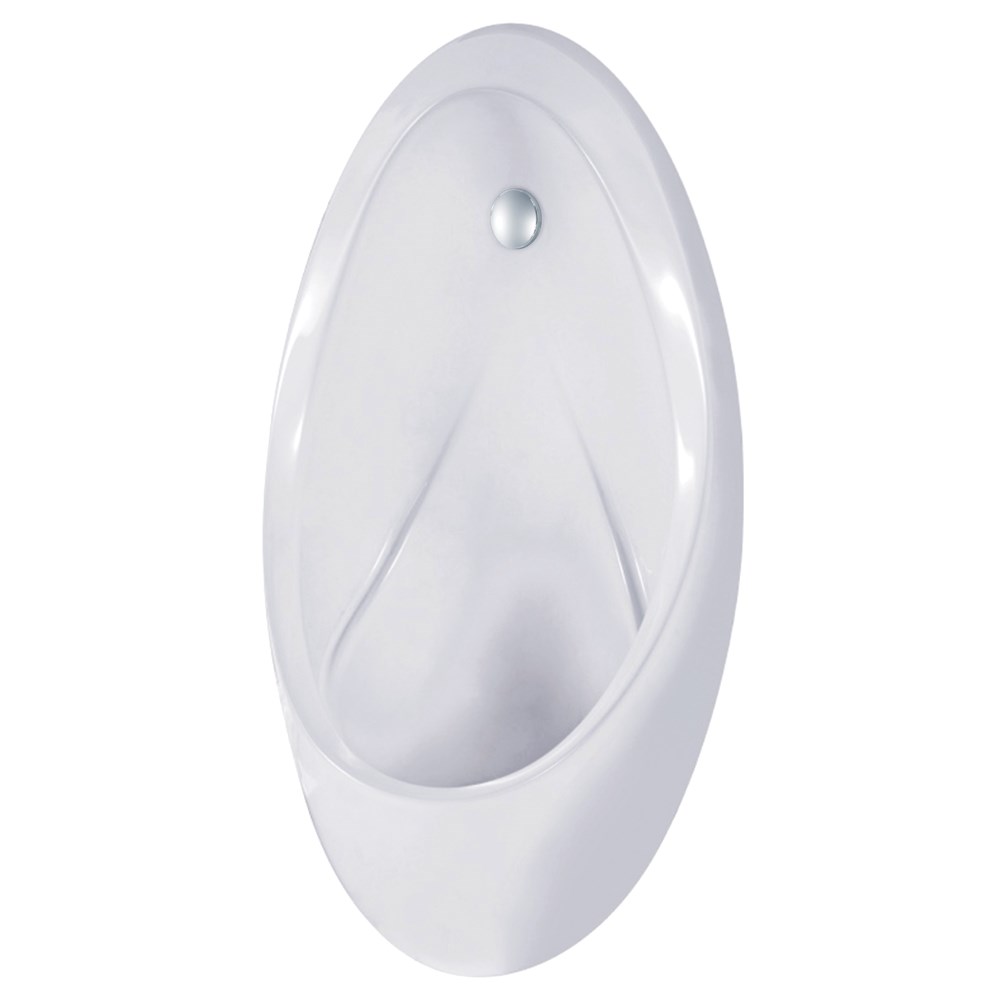

• 1 x Isabella Wall-Hung Urinal
• 1 x Zip FlushMaster WS005 Ceiling Sensor and Solenoid Kit

Requires:

• Zip FlushMaster Direct Injection Air Break Valve in water supply line. Available separately:
  • 1" BSP / 25mm - 99024
  • 1.25" BSP / 32mm - 99025
  • 1.5" BSP / 40mm - 99026

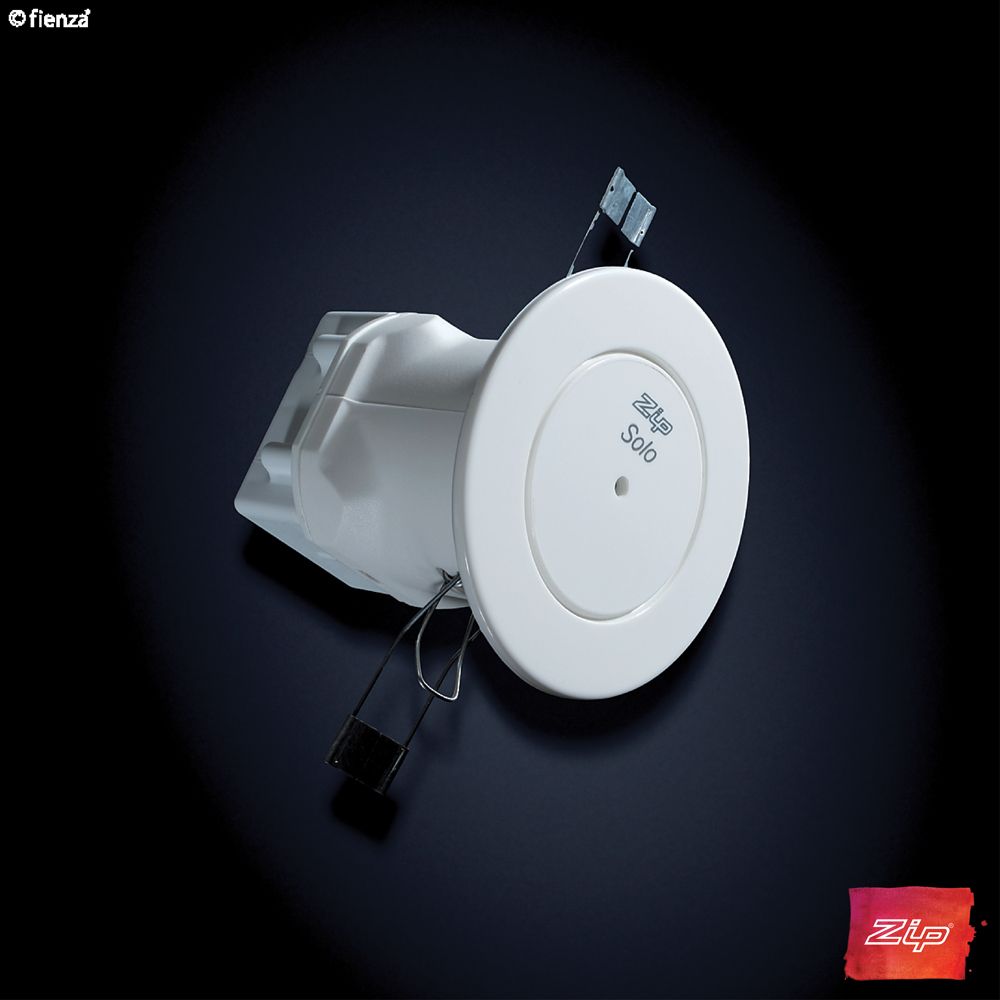

Ceiling sensor:

• 80mm diameter x 64mm cutout

Features:

• Single stall flushing system
• Automatic & touch-free
• Compact 80mm ceiling-recessed infrared sensor
• Narrow beam limits detection area to under 300mm wide
• Five second sensor delay beats accidental tripping
• Adjustable flush cycle to meet your needs precisely
• Factory set for 12-hour janitor flush when unused

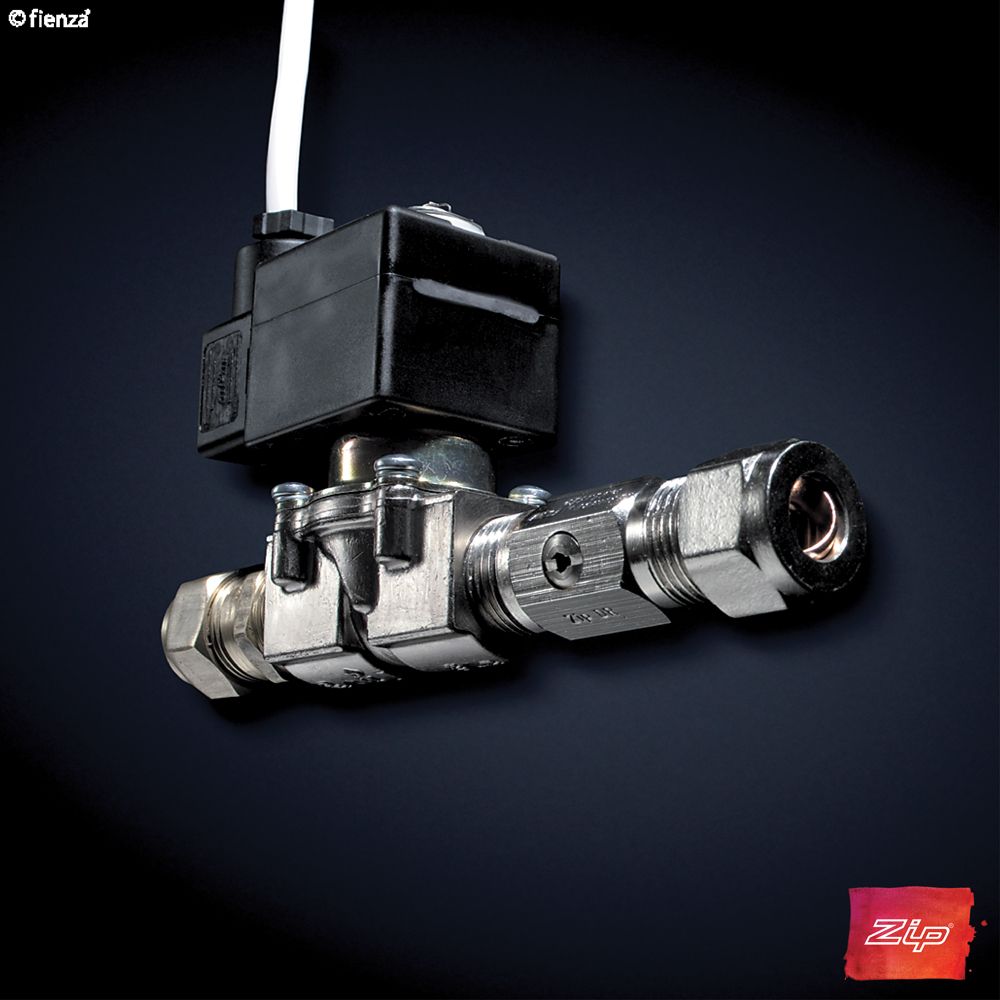

• Solenoid latching valve supplied with connections
• Power pack (240/6 volt) connects to 10-amp GPO
• WELS 3 Star rated, 1.7L per flush per stall
• WELS Registration: U00386
